Ulvenkrysset Oslo

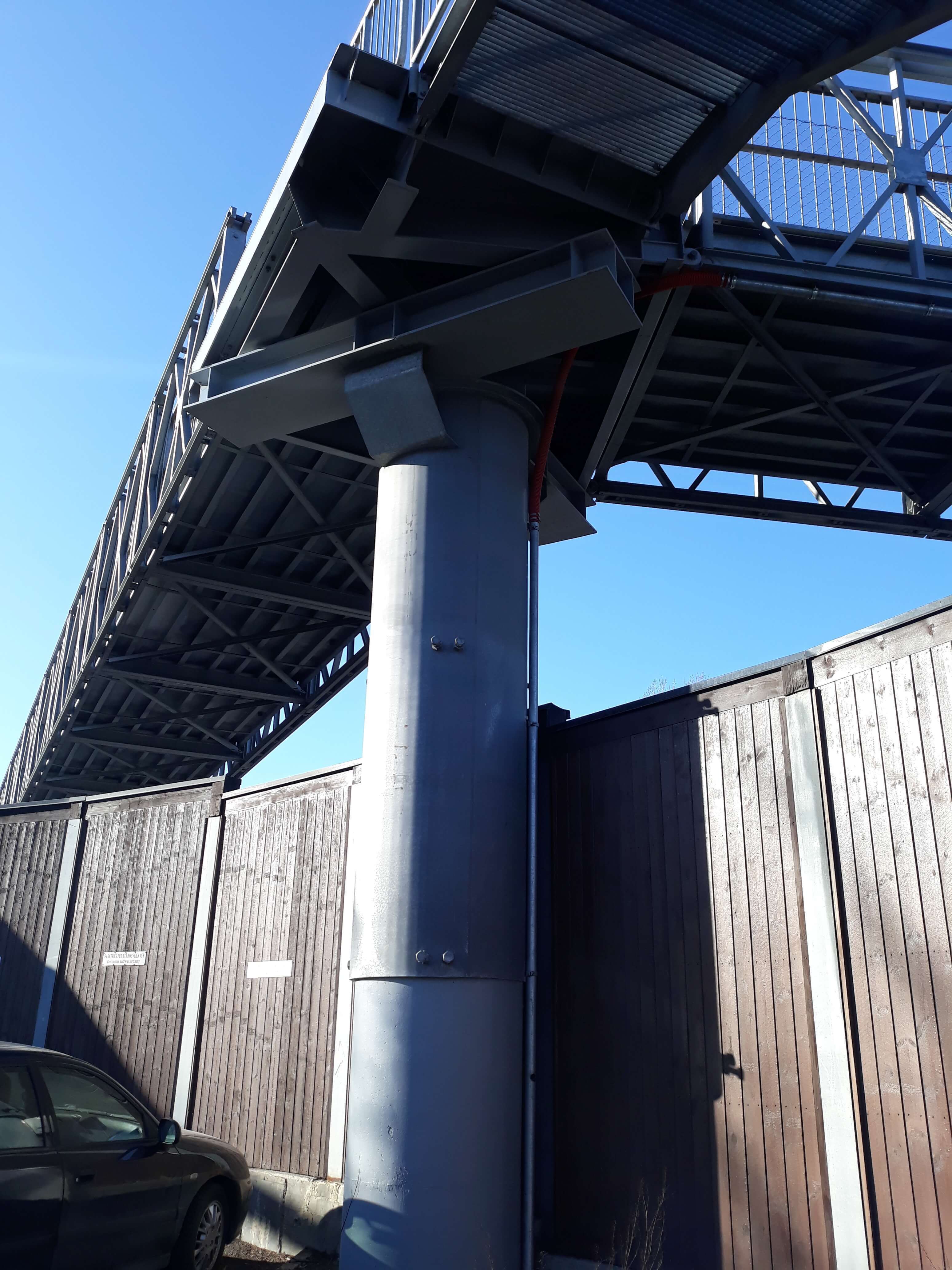

An existing footbridge crossing the E6 in Oslo, had to be replaced with the re-use of existing supports and with the same lay-out as the existing bridge. Janson Bridging has designed, produced and transported this footbridge type JPB-ped.

The design of the bridge had to be made with the omission of one intermediate support and with a special adaptor for an existing concrete column

Bridge consist of 51 bays of 3 meter wide, 5 platforms, two stairs and two special intermediate supports.

Share on:

Project details

Pedestrian bridge
Road surface width
2,5 m
Deck load
5 kN/m²
Tare weight
142 ton
Bridge length
170 m
Pedestrian bridge
